Micro-Modular Data Center Facilities | Data Center Power Supply Solutions | Precision Air Conditioning for Server Rooms

Rack-to-rack connectors

Comes standard with cabinet-mounting accessories for easy installation

L-shaped rail

A pair of trackless devices used together

1U blank panel

Used to separate hot and cold airflow within the cabinet, preventing airflow disruption; 1U tool-free installation

Fixed shelf

Designed to hold IT equipment, suitable for use in N-series server cabinets and blower cabinets with a depth of 1200 mm; load capacity: 100 kg

Cable management channel

Installs directly into the mounting holes on the U-post and is used to route horizontal cables; designed for use with switches

Vertical Cable Management Panel

Suitable for use with all cabinets, including cable management panels and PDU installation

Top-mounted cable tray

H-shaped cable trays can be categorized into power, low-voltage, and fiber-optic types

Row-to-row routing ladder

A cross-over used for inter-row routing

Cabinet base

Standard height: 300

Single-flap canopy module

Flip-up all-glass skylight with 95% light transmission; features a built-in lighting module, eliminating the need for additional lighting fixtures; designed to fit a 600mm-wide cabinet

Side doors and side doors with top trim

Cover the glass door and install a large screen to enhance the aesthetic appeal

UPS Module Unit

90–300 kVA main units come standard with a 30 kVA module

PDU

10+4, 16+4, 20+4

More parameters

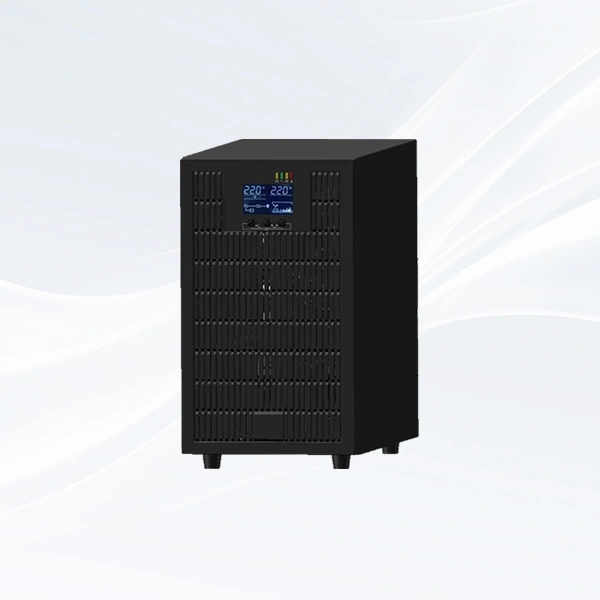

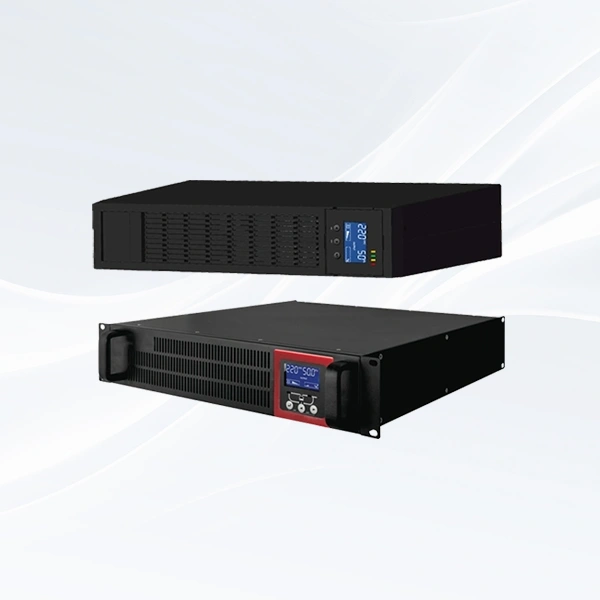

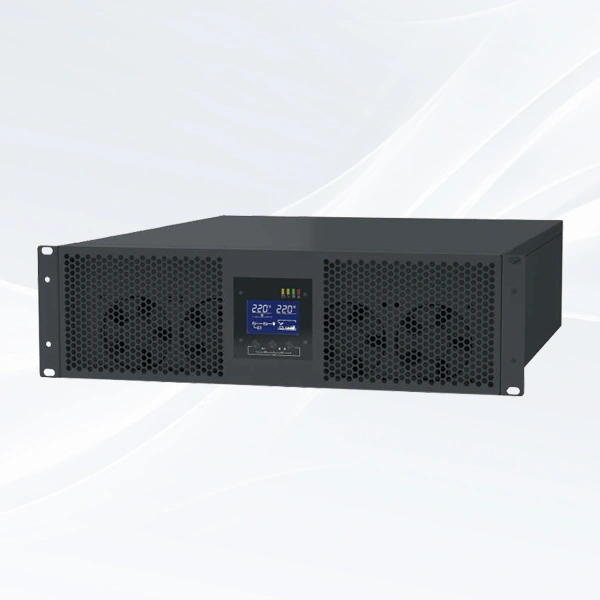

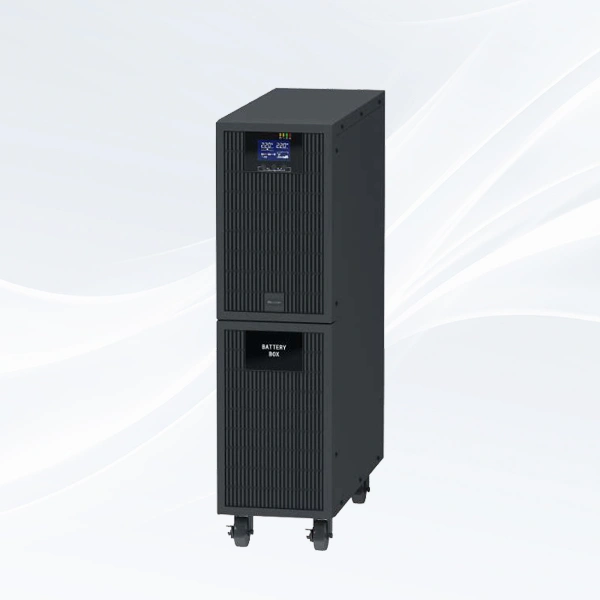

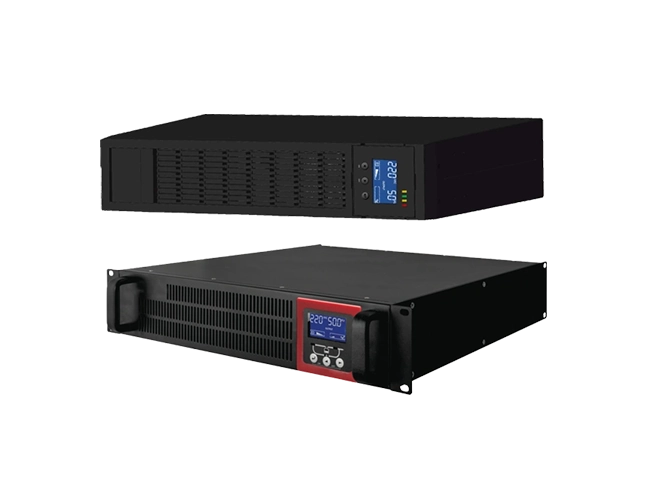

VH-UT11 1–10 kVA UPS (Uninterruptible Power Supply)

Equipment Type

DUninterruptible Power SuUPSTower-typeRack-mounted

Model (Rack-Mounted)

VH-UR1101(S)/VH-UR1102(S)/VH-UR1103(S)/VH-UR1106/VH-UR1110

Model (Tower Type)

VH-UT1101(S)/VH-UT1102(S)/VH-UT1103(S)/VH-UT1106(S)/VH-UT1110(S)

1.0

DC voltage

36 VDC (standard model: 24 VDC)/72 VDC (standard model: 48 VDC)/96 VDC (standard model: 72 VDC)/192–240 Vdc (adjustable from 16 to 20 cells)

Charging current

Main unit: Default 5A (supports up to 12A) Standard unit: 1A

Auto-start on incoming call

Support

More parameters

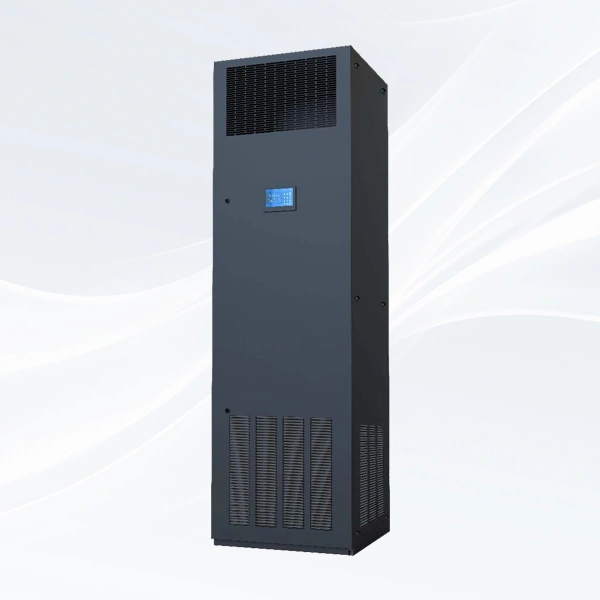

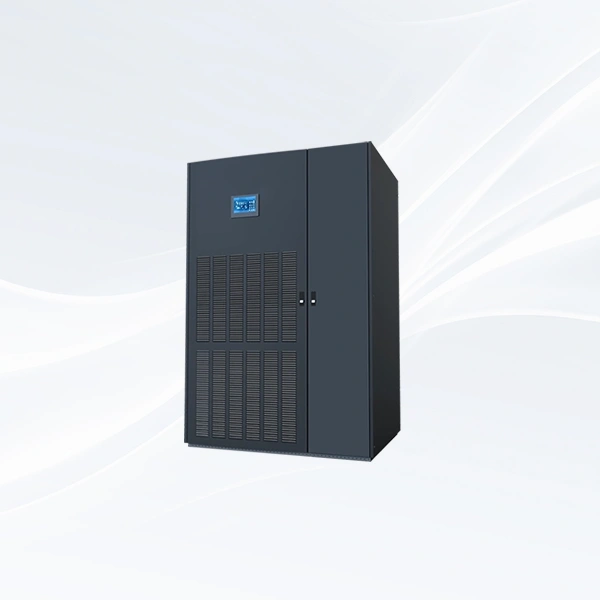

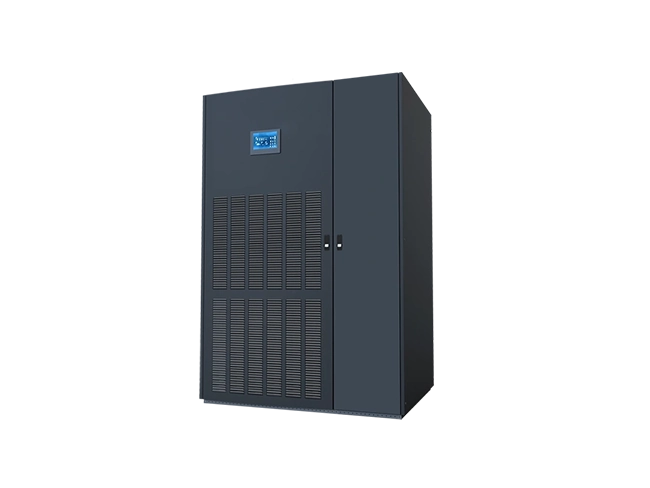

Precision Air Conditioning for Small Server Rooms

Model

VH-CBS006/CBS008/CBS013/CBS017/CBS020

Features

Cooling Only / Heating and Cooling / Constant Temperature and Humidity

Air outlet location

F(≤VH-CBS008)&F/D(≥VH-CBS013)

Input Power Type

220Vac/1Ph/50Hz(VH-CBS008)/380Vac/3Ph/50Hz(≥VH-CBS008)

Cooling capacity

5.8/7.6/12.6/17.5/50.2kW

Refrigerant Type

R410a

Compressor Type

Fixed-speed compressor

Number of compressors

Fan Type

DC EC centrifugal fan

Number of fans

Fan airflow

1900m³/h(VH-CBS006)/2400m³/h(VH-CBS008)/3800m³/h(VH-CBS013)/5300m³/h(VH-CBS017)/5700m³/h(VH-CBS020)

External pressure

Standard static pressure: 20 Pa; adjustable from 0 to 400 Pa

Electric heating method

PTC Electric Heater

Electric heating capacity

3kW(≤VH-CBS0013)/4kW(≥VH-CBS017)

Humidification Method

Electrode-type humidifier

Humidification capacity

3kg/h

Throttling methods

Electronic expansion valve

Air filter

G4 Panel Filter

Indoor unit noise level

65dBA3kW(≤VH-CBS008)/66dBA3kW(VH-CBS013)/67dBA3kW(VH-CBS017)/68dBA3kW(VH-CBS020)

More parameters

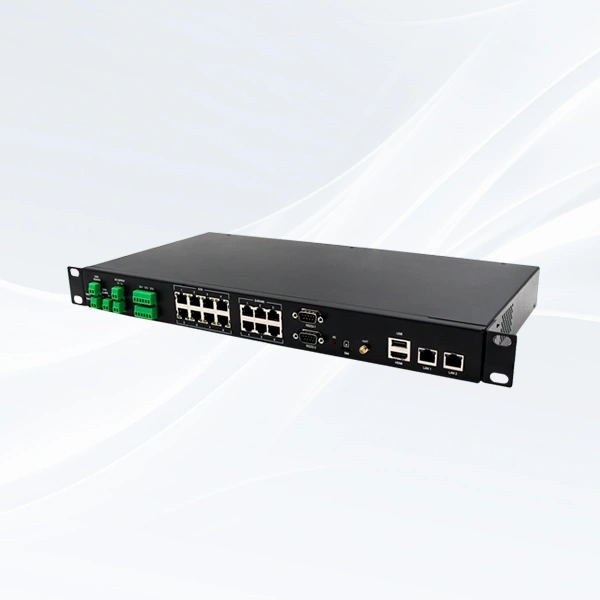

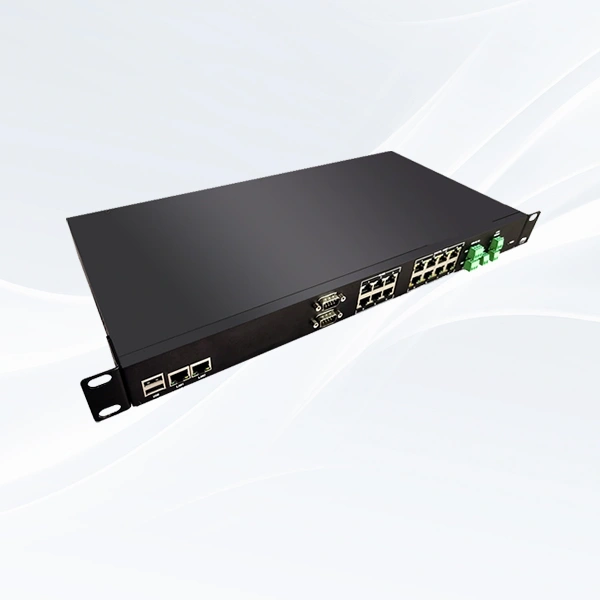

Embedded Environmental Monitoring Host – VH3300-II Series

Architecture

ARM architecture, multi-language B/S design, built-in Linux operating system; no need to install additional servers or software

Water Leak Alarm

Built-in leak detection, plus a leak detection cord or sensor unit

4G module

Built-in 4G module, supports SMS and voice alerts (optional)

RPM

Internal Fan Speed Monitoring

Computer case

1U/19-inch standard chassis, compact design, suitable for various racks and enclosures

Standard

Industrial-grade design, stable 24/7 operation

Voltage

Wide input voltage range: 100–240 V AC

Design

Redundant Power Supply Design

Stable

Built-in independent watchdog system ensures zero downtime

Expand

Supports the expansion of distributed monitoring devices

Interface

Easy-to-use configuration software; front-panel ports for convenient wiring

More parameters

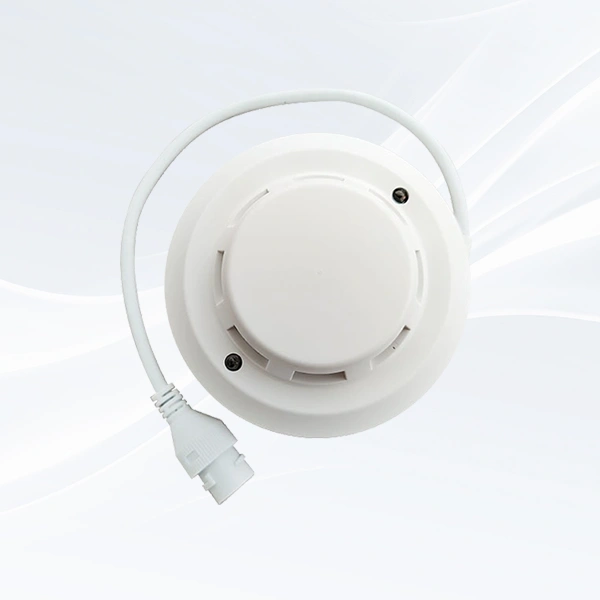

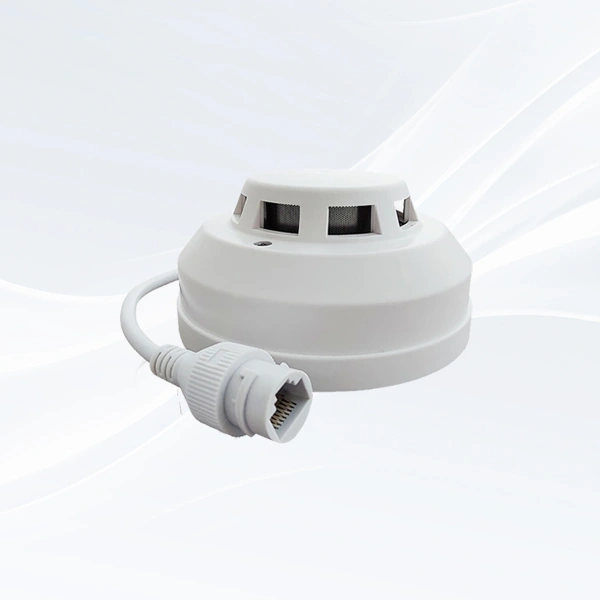

Smoke Sensor VH-602PC-4

Operating voltage

9V–35V DC

Standby current

12 mA (relay normally closed) & 500 μA (relay normally open)

Trip current

Infrared LED is always on

sensor

Infrared photoelectric sensor

Operating temperature

-10°C to +50°C

Operating humidity

Up to 95% RH (non-condensing)

Resistance to RF interference

10MHz-1GHz 20V/m

Alarm Output

Normally open or normally closed (selectable); contact rating: 28 V DC, 100 mA

Reset method

Automatic reset or power-off reset (optional)

Coverage Area

When the ceiling height is between 6 and 12 meters, the coverage area of a single detector is 80 square meters for a typical protected area; when the ceiling height is less than 6 meters, the coverage area is 60 square meters. Specific parameters should be determined in accordance with the Design Code for Automatic Fire Alarm Systems (GD50116-98).

Applicable Standards

GB 4716-2005, EN 54-7

Sensitivity

0.5 dB/m (±0.1 dB/m)

Dimensions

104 mm (diameter) × 51 mm (height)

More parameters

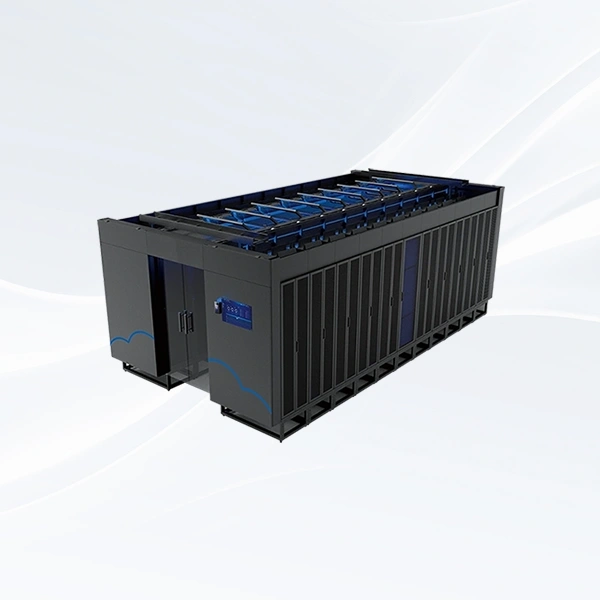

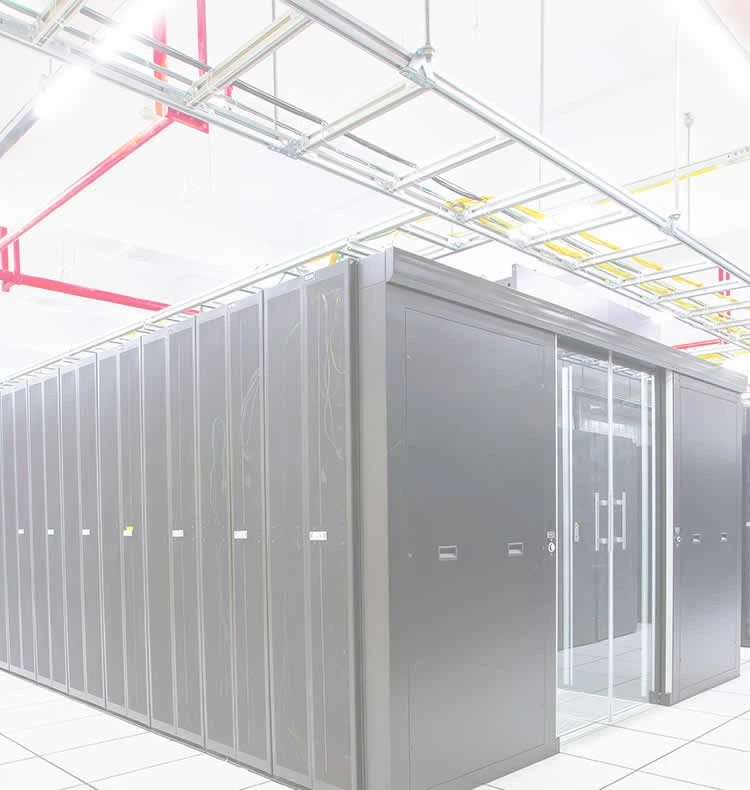

Micro-Modular Data Center Room

New Directions in Data Center ConstructionLearn More

Critical Equipment for High-Performance Data Centers

Server Room Air Conditioning and UPS Power SupplyLearn More

Weihuan Technology

New Series of Modular Data CentersLearn More

What’s New

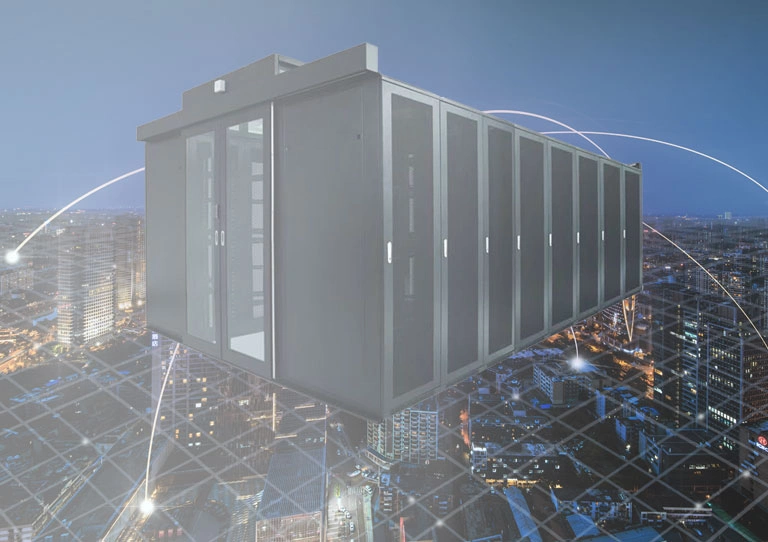

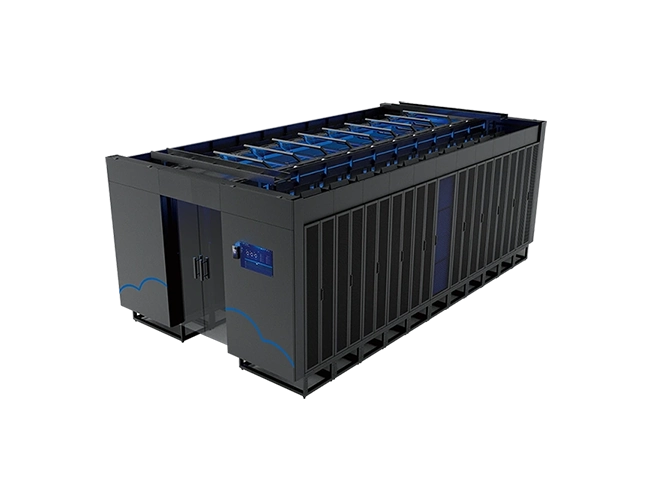

Modular Data Center

Weihuan Technology Micro-Modules: A New Direction for Data Centers

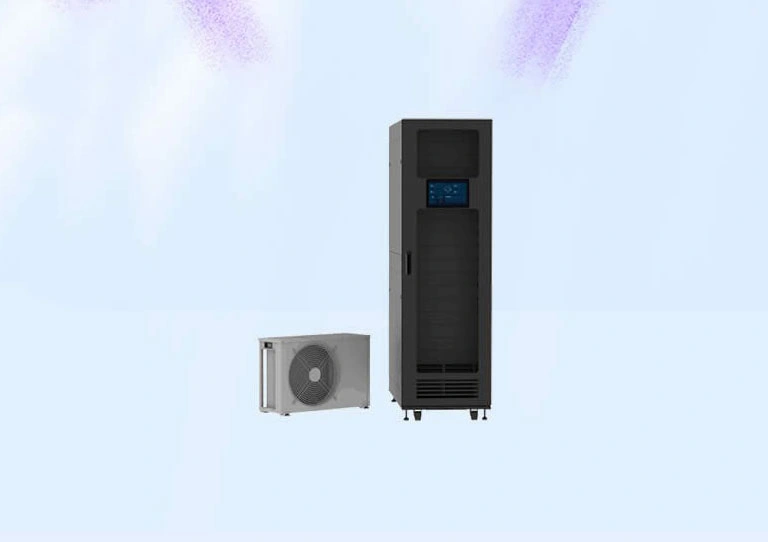

Verhi’s Precision Air Conditioning

Highly efficient and energy-saving, specifically designed for data center temperature control

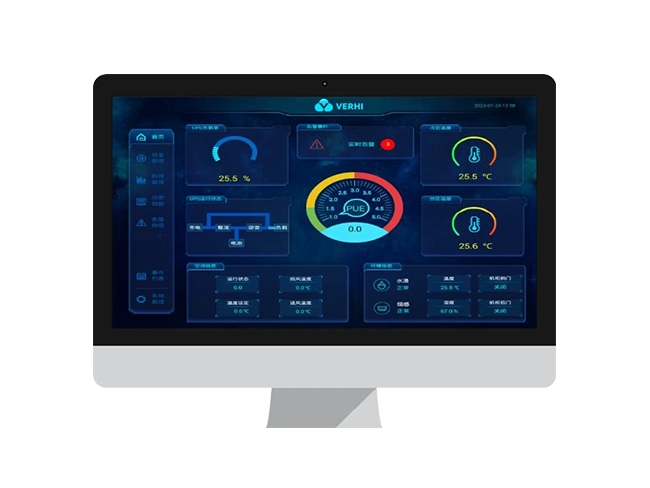

Environmental Monitoring
