Rack-to-rack connectors

Comes standard with cabinet-mounting accessories for easy installation

L-shaped rail

A pair of trackless devices used together

1U blank panel

Used to separate hot and cold airflow within the cabinet, preventing airflow disruption; 1U tool-free installation

Fixed shelf

Designed to hold IT equipment, suitable for use in N-series server cabinets and blower cabinets with a depth of 1200 mm; load capacity: 100 kg

Cable management channel

Installs directly into the mounting holes on the U-post and is used to route horizontal cables; designed for use with switches

Vertical Cable Management Panel

Suitable for use with all cabinets, including cable management panels and PDU installation

Top-mounted cable tray

H-shaped cable trays can be categorized into power, low-voltage, and fiber-optic types

Row-to-row routing ladder

A cross-over used for inter-row routing

Cabinet base

Standard height: 300

Single-flap canopy module

Flip-up all-glass skylight with 95% light transmission; features a built-in lighting module, eliminating the need for additional lighting fixtures; designed to fit a 600mm-wide cabinet

Side doors and side doors with top trim

Cover the glass door and install a large screen to enhance the aesthetic appeal

UPS Module Unit

90–300 kVA main units come standard with a 30 kVA module

PDU

10+4, 16+4, 20+4

More parameters

VH-UT11 1–10 kVA UPS (Uninterruptible Power Supply)

Equipment Type

DUninterruptible Power SuUPSTower-typeRack-mounted

Model (Rack-Mounted)

VH-UR1101(S)/VH-UR1102(S)/VH-UR1103(S)/VH-UR1106/VH-UR1110

Model (Tower Type)

VH-UT1101(S)/VH-UT1102(S)/VH-UT1103(S)/VH-UT1106(S)/VH-UT1110(S)

1.0

DC voltage

36 VDC (standard model: 24 VDC)/72 VDC (standard model: 48 VDC)/96 VDC (standard model: 72 VDC)/192–240 Vdc (adjustable from 16 to 20 cells)

Charging current

Main unit: Default 5A (supports up to 12A) Standard unit: 1A

Auto-start on incoming call

Support

More parameters

Precision Air Conditioning for Small Server Rooms

Model

VH-CBS006/CBS008/CBS013/CBS017/CBS020

Features

Cooling Only / Heating and Cooling / Constant Temperature and Humidity

Air outlet location

F(≤VH-CBS008)&F/D(≥VH-CBS013)

Input Power Type

220Vac/1Ph/50Hz(VH-CBS008)/380Vac/3Ph/50Hz(≥VH-CBS008)

Cooling capacity

5.8/7.6/12.6/17.5/50.2kW

Refrigerant Type

R410a

Compressor Type

Fixed-speed compressor

Number of compressors

Fan Type

DC EC centrifugal fan

Number of fans

Fan airflow

1900m³/h(VH-CBS006)/2400m³/h(VH-CBS008)/3800m³/h(VH-CBS013)/5300m³/h(VH-CBS017)/5700m³/h(VH-CBS020)

External pressure

Standard static pressure: 20 Pa; adjustable from 0 to 400 Pa

Electric heating method

PTC Electric Heater

Electric heating capacity

3kW(≤VH-CBS0013)/4kW(≥VH-CBS017)

Humidification Method

Electrode-type humidifier

Humidification capacity

3kg/h

Throttling methods

Electronic expansion valve

Air filter

G4 Panel Filter

Indoor unit noise level

65dBA3kW(≤VH-CBS008)/66dBA3kW(VH-CBS013)/67dBA3kW(VH-CBS017)/68dBA3kW(VH-CBS020)

More parameters

Embedded Environmental Monitoring Host – VH3300-II Series

Architecture

ARM architecture, multi-language B/S design, built-in Linux operating system; no need to install additional servers or software

Water Leak Alarm

Built-in leak detection, plus a leak detection cord or sensor unit

4G module

Built-in 4G module, supports SMS and voice alerts (optional)

RPM

Internal Fan Speed Monitoring

Computer case

1U/19-inch standard chassis, compact design, suitable for various racks and enclosures

Standard

Industrial-grade design, stable 24/7 operation

Voltage

Wide input voltage range: 100–240 V AC

Design

Redundant Power Supply Design

Stable

Built-in independent watchdog system ensures zero downtime

Expand

Supports the expansion of distributed monitoring devices

Interface

Easy-to-use configuration software; front-panel ports for convenient wiring

More parameters

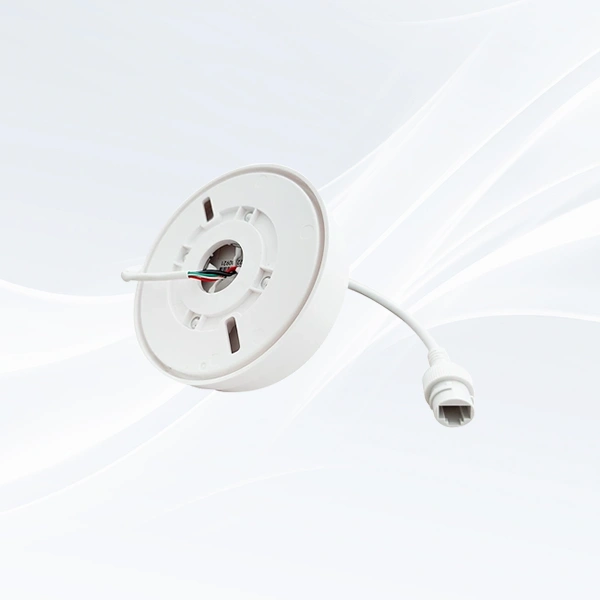

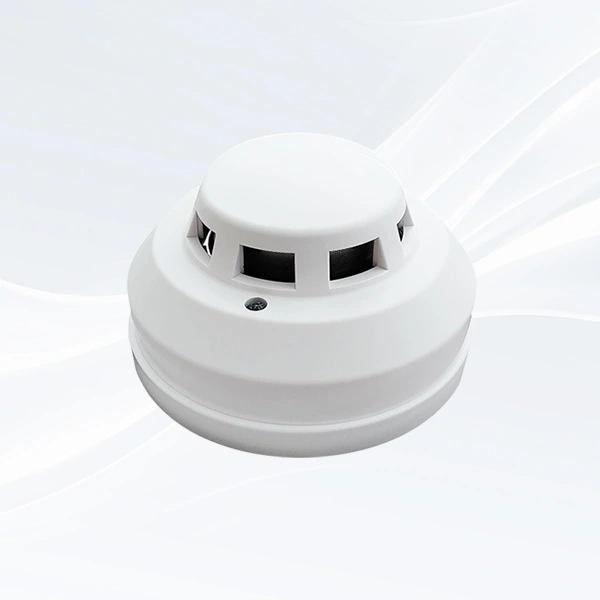

Smoke Sensor VH-602PC-4

Operating voltage

9V–35V DC

Standby current

12 mA (relay normally closed) & 500 μA (relay normally open)

Trip current

Infrared LED is always on

sensor

Infrared photoelectric sensor

Operating temperature

-10°C to +50°C

Operating humidity

Up to 95% RH (non-condensing)

Resistance to RF interference

10MHz-1GHz 20V/m

Alarm Output

Normally open or normally closed (selectable); contact rating: 28 V DC, 100 mA

Reset method

Automatic reset or power-off reset (optional)

Coverage Area

When the ceiling height is between 6 and 12 meters, the coverage area of a single detector is 80 square meters for a typical protected area; when the ceiling height is less than 6 meters, the coverage area is 60 square meters. Specific parameters should be determined in accordance with the Design Code for Automatic Fire Alarm Systems (GD50116-98).

Applicable Standards

GB 4716-2005, EN 54-7

Sensitivity

0.5 dB/m (±0.1 dB/m)

Dimensions

104 mm (diameter) × 51 mm (height)

More parameters

Smoke Sensor VH-602PC-4

8 Ratings

The VH-602pc-4 smoke detector is a non-coded smoke detector equipped with a pair of digital output contacts, allowing users to select either normally open (NO) or normally closed (NC) output according to their specific needs. During normal operation, the indicator light flashes once every 9 seconds; during an alarm, the indicator light remains lit, and the alarm output contacts activate.

01) Selectable power-off reset or automatic reset;

02) Non-polarized power input;

03) Selectable alarm output (N.C. or N.O.);

04) Intelligent logic control to filter out various false alarms;

05) Networked output/LED indicator alarm;

06) Manufactured using SMT technology for high stability;

07) Designed to be dustproof, insect-proof, and resistant to white light interference;

08) Metal shielding cover for resistance to radio frequency interference (20 V/m–1 GHz).

Category: Smart Management System

Inquiry

Overview

No.	●	Operating Environment
1	Operating Voltage	DC9V ~ 35V
2	Standby Current	12mA (relay normally closed) & 500uA (relay normally open)
	●	Transmission
3	Alarm Current	Infrared LED steady on
4	Sensor	Infrared photoelectric sensor
	●	Environment
5	Operating Temperature	-10°C ~ +50°C
6	Operating Humidity	Max 95% RH (non-condensing)
	●	Parameters
7	RF Immunity	10MHz-1GHz, 20V/m
8	Alarm Output	Normally open / normally closed selectable, contact rating DC28V 100mA
	●	More
9	Reset Method	Auto reset / power-off reset selectable
10	Coverage Area	When mounting height is 6m-12m, protection area per detector is 80m² for general protection sites; when height is below 6m, protection area is 60m². Specific parameters shall be subject to Code for Design of Automatic Fire Alarm System GD50116-98.
11	Applicable Standards	GB4716-2005, EN54-7
12	Sensitivity	0.5dB/m (±0.1dB/m)
12	Dimensions	104mm (diameter) × 51mm (height)
