  Skid steer loader
  Skid-Steer Loader，Designed for Efficient Operation in Tight Spaces
  View All
  CM-S260 Tracked Skid Steer Loader
  Power Mode
  Crawler-type
  Rated load capacity
  260kg
  Overturning load
  730kg
  Total weight
  1500kg
  Types of Lifting Mechanisms
  Radial lifting
  Engine Brand
  CatKubotaWeichaiYuchaiYunnei
  Rated power
  25.1/2800 kW/rpm
  Maximum torque
  87 N·m
  Engine displacement
  1.5 L
  Emissions Standards
  U.S.EPA Tier 3
  Maximum speed
  9.4 km/h
  Bearing pressure
  19.2 kPa
  Track plate width
  297 mm
  Angle of departure
  55°
  System pressure
  207 bar
  System Rated Flow Rate
  37.9 L/min
  Fuel Tank
  37.9 L
  Crankcase
  3.8 L
  Engine Coolant
  5.6 L
  Hydraulic Oil Tank
  30.3 L
  Maximum height of the bucket hinge pin
  2038 mm
  Overall length (with bucket)
  2845mm
  Total length (without attachments)
  2311mm
  Overall width (track edge to edge)
  1220mm
  Overall height (to the top of the cab)
  1805mm
  Minimum ground clearance
  255mm
  Track contact length
  1380mm
  More parameters
  CM-S16 Skid Steer Loader
  Rated load capacity
  745kg
  Total weight
  2620kg
  Payload
  Less than 0.8 tons
  Rated power
  36.5 kW/rpm
  Maximum speed
  10.5 km/h
  Unloading distance (at maximum height)
  457 mm
  Maximum height of the bucket hinge pin
  2918 mm
  Overall length (with bucket)
  3375 mm
  Overall width (bucket edge)
  1728 mm
  Overall height (to the top of the cab)
  1999 mm
  Minimum ground clearance
  186 mm
  More parameters
  CM-S360 Tracked Skid Steer Loader
  Engine Model
  Electric
  Rated power
  6kw、 72V、 125ah/7.5/8.6/8.5/9.9kw
  cylinder
  1
  Method of intake
  Naturally aspirated
  Emissions Standards
  Euro 5/EPA
  Rated load
  200kg
  Maximum load
  300kg
  Maximum lifting force
  3.5 kN
  Bucket capacity
  0.12m2
  Travel speed
  0-6km/h
  Three Tasks and Time
  9s
  Operating system pressure
  17-21bar
  Fuel tank capacity
  5L
  Operational quality
  900kg
  Tire model
  18*8.5-8
  Overall vehicle height
  1300mm
  Total length with standard bucket
  2070mm
  Vehicle width
  980mm
  Overall length without bucket
  1640mm
  Bucket width
  1050mm
  Tail length
  500mm
  Maximum operating height
  2400mm
  To the height of the bucket pin
  1870mm
  Maximum height with the bucket in the horizontal position
  1720mm
  Unloading height
  1510mm
  Unloading distance
  250mm
  Wheelbase
  750mm
  Ground clearance
  130mm
  The angle at which the bucket tilts on the ground
  27°
  The maximum tilt angle of the bucket
  114°
  More parameters
  Compact excavator
  Compact Excavators The Ideal Choice for Small-Scale Projects
  View All
  CM-W06 Compact Excavator
  Bucket capacity
  0.02 m³
  Bucket digging force
  7.5kn
  Maximum climbing angle
  30°
  Engine Model
  Air-cooled single-cylinder diesel engine
  Maximum engine output
  7.6 kW / 8.2 kW
  Walking speed
  1.8 km/h
  Dimensions (L x W x H)
  2480 x 720 x 1375 mm
  Total weight
  600 kg
  Track length
  1140 mm
  Track width
  150 mm
  Minimum ground clearance
  80 mm
  Maximum digging height
  2350 mm
  Maximum unloading height
  1600 mm
  Maximum digging depth
  1200 mm
  Maximum digging radius
  2450 mm
  Minimum turning radius
  1100 mm
  Maximum ground clearance of the dozer blade
  120 mm
  Maximum depth of blade penetration
  200 mm
  More parameters
  Lawn mower
  Track-Type Lawn Mower Essential Equipment for Weed and Lawn Maintenance
  View All
  CM-Y750 Tracked Transport Vehicle
  Dimensions (L x W x H)
  1.8 x 0.75 x 1.2 m
  Container dimensions
  1.20*0.75*0.45m
  Wheelbase
  70 cm
  Engine Make and Model
  186FA
  Transmission Material and Model
  Guli Model 13
  Track Specifications and Models
  180*72*38mm
  Track type
  Steel-cord rubber tracks
  Hydraulic dump function
  Yes
  Can a crane be added?
  Yes
  Startup method
  Electric/Manual
  Load capacity
  650 kg
  gear
  3 forward gears, 1 reverse gear
  Ground clearance
  42 cm
  Ascent angle
  ≤45°
  More parameters
  Remote-controlled lawn mower
  Track-Type Lawn Mower Essential Equipment for Weed and Lawn Maintenance
  View All
  CM-G530 Remote-Control Lawn Mower
  Overall dimensions
  1000*880*550mm
  Charging Mode
  Self-charging system
  Cutting width
  530mm
  Stubble height
  20mm-120mm
  Speed
  0-7km/H
  Climbing angle
  ＜45°
  Total weight
  145kg
  Working Method
  Hybrid
  Startup method
  Electric start / Recoil start
  How to Use
  Remote control
  Travel motor
  2 x 600W motors
  Battery model
  24v12A
  Engine
  Gasoline engine
  Output power
  9HP
  More parameters
  Electric forklift
  All-Terrain Forklifts,Electric Forklifts,The Ultimate Solution for Outdoor and Indoor Material Handling
  View All
  CM-CPD-15 1.5-Ton Electric Forklift
  Model
  CM-CPD-15
  Lifting height
  3000mm
  Net weight (including battery)
  2200kg
  Rated load capacity
  1500kg
  Driving Style
  Ride-on
  Drive Type
  Electric
  Drive Control Type
  AC Speed Control
  Wheelbase
  1350mm
  Tire Type
  Solid tire
  Number of wheels: front/rear (x = driven wheel)
  2x/2
  Front wheel track
  930mm
  Rear track width
  890mm
  Overall length
  3170mm
  Overall width
  1070/1220mm
  Vehicle length
  2100mm
  Fork dimensions
  35/100/1070
  Brake Type
  Hydraulic
  Drive motor power
  4.0kw
  Travel speed (fully loaded/unloaded)
  11/13(km/h)
  Gradeability (fully loaded/unloaded)
  12/15 (%)
  Hoist motor power
  3.0 kw
  Battery Voltage/Capacity
  60/70 (V/An)
  More parameters
  CM-T300 Off-Road Forklift with Multi-Function Rear Crane
  Product Model
  CM-T300
  Equipment Load
  3-ton 4WD off-road forklift with rear crane
  Equipment Name
  3M x 4-section manganese steel arm
  Engine Model/Power
  Yunnei 490/55 kW
  Drive Type
  Sigang
  support leg
  5 legs
  Rated capacity of the boom
  3 tons
  Forklift lifting capacity
  3.5 tons
  Operation Mode
  Perform the operation
  Fork length
  1220mm
  Boom rotation angle
  360°
  Lifting height
  4000mm
  Tire Size
  20.5/70-16
  Braking system
  All-wheel wet brakes
  Axle
  Heavy-duty truck axle
  Transmission type
  Continuously variable transmission
  Hill-climbing ability
  30°
  More parameters
  CM-T500 Off-Road Forklift with Multi-Function Rear Crane
  Product Model
  CM-T500
  Product Name
  5-ton 4WD off-road forklift with rear crane
  Boom Specifications
  4M x 4-section manganese steel arm (custom)
  Engine Model/Power
  4102 Turbocharged / 76 kW
  Rated capacity of the boom
  5.0 Tons
  Drive Type
  All-wheel drive
  support leg
  5 legs
  Forklift lifting capacity
  5.0 Tons
  Operation Mode
  Operations on the equipment
  Fork length
  1520mm
  Boom rotation angle
  360°
  Lifting height
  6000mm
  Tire Size
  16/70-20
  Braking system
  All-wheel wet brakes
  Axle
  Heavy-duty large-flange girder bridge
  Transmission type
  Continuously variable transmission
  Hill-climbing ability
  35°
  More parameters
  Concrete mixer truck
  Concrete Mixer Truck Designed for concrete road transport, offering stability and high efficiency
  View All
  CM-LH300 3-cubic-meter Track-Type Concrete Mixer Truck
  Vehicle Name
  3-cubic-meter tracked concrete mixer truck
  Vehicle engine
  Yunnei 4102 Turbocharged
  Chassis dimensions
  3500*2200*900mm
  Vehicle Dimensions
  5650*2200*2950mm
  Gross weight
  3900KG
  Rear axle
  Rear Axle for Tracked Vehicles (153)
  Track contact length
  2600mm
  Track width
  450mm
  Maximum speed
  30km/h
  Transmission
  Wanliyang 5-Speed High/Low Range
  Braking system
  Air brake
  Number of track links
  Section 82
  Below is
  Tank Specifications
  Tank Material
  BW300TP High-Strength Wear-Resistant Steel (Shot-blasted and rust-proofed)
  Blade material
  5 mm alloy steel
  End cap material
  8 mm alloy steel with double heads
  Gear reducer
  Hebei Keyi
  Hydraulic system
  Jinan Defense Industry
  Cooling system
  Xinxiang 18L Automatic
  How to Use
  around
  Discharge range
  180° adjustment up, down, left, and right
  Water Supply System
  200L
  More parameters
Support
Blogs
About Us
Contact Us

Search productSearch post

product center

High quality high performance excellent service

Search Product

Electric forklift

Electric forklift

Zhonggong Manufacturing\'s electric forklifts are powered by new energy batteries, making them not only environmentally friendly but also significantly more energy-efficient. Backed by “Made in China,” they are a brand you can trust.

Screen Default Ranking Price By Date

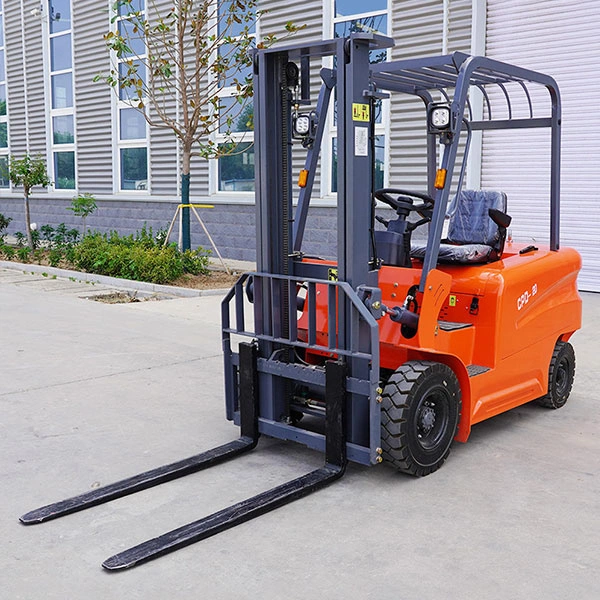

CM-CPD-15 1.5-Ton Electric Forklift
