CM-260 Tracked Skid Steer Loader

Power Mode

Crawler-type

Rated load capacity (kg)

260

Overturning load (kg)

730

Total weight (kg)

1500

Types of Lifting Mechanisms

Radial lifting

Engine Brand

CatKubotaWeichaiYuchaiYunnei

Rated power (kW/rpm)

25.1/2800

Maximum torque (N·m)

Engine displacement (L)

1.5

Emissions Standards

U.S.EPA Tier 3

Maximum speed (km/h)

9.4

Bearing pressure (kPa)

19.2

Track plate width (mm)

297

Angle of departure (°)

System pressure (bar)

207

System Rated Flow Rate (L/min)

37.9

Fuel Tank (L)

37.9

Crankcase (L)

3.8

Engine Coolant (L)

5.6

Hydraulic Oil Tank (L)

30.3

Maximum height of the bucket hinge pin (mm)

2038

Overall length (with bucket) (mm)

2845

Total length (without attachments) (mm)

2311

Overall width (track edge to edge) (mm)

1220

Overall height (to the top of the cab) (mm)

1805

Minimum ground clearance (mm)

255

Track contact length (mm)

1380

More parameters

CM-S16 Skid Steer Loader

Rated load capacity (kg)

745

Total weight (kg)

2620

Payload (tons)

Less than 0.8 tons

Rated power (kW/rpm)

36.5

Maximum speed (km/h)

10.5

Unloading distance (at maximum height) (mm)

457

Maximum height of the bucket hinge pin (mm)

2918

Overall length (with bucket) (mm)

3375

Overall width (bucket edge) (mm)

1728

Overall height (to the top of the cab) (mm)

1999

Minimum ground clearance (mm)

186

More parameters

CM-Y06 Compact Excavator

Bucket capacity (m³)

0.02

Bucket digging force

7.5kn

Maximum climbing angle

30°

Engine Model

Air-cooled single-cylinder diesel engine

Maximum engine output

7.6 kW / 8.2 kW

Walking speed

1.8 km/h

Dimensions (L x W x H)

2480 x 720 x 1375 mm

Total weight

600 kg

Track length

1140 mm

Track width

150 mm

Minimum ground clearance

80 mm

Maximum digging height

2350 mm

Maximum unloading height

1600 mm

Maximum digging depth

1200 mm

Maximum digging radius

2450 mm

Minimum turning radius

1100 mm

Maximum ground clearance of the dozer blade

120 mm

Maximum depth of blade penetration

200 mm

More parameters

CM-S750 Tracked Transport Vehicle

Dimensions (L x W x H)

1.8 x 0.75 x 1.2 m

Container dimensions

1.20*0.75*0.45m

Wheelbase

70 cm

Engine Make and Model

186FA

Transmission Material and Model

Guli Model 13

Track Specifications and Models

180*72*38mm

Track type

Steel-cord rubber tracks

Hydraulic dump function

Yes

Can a crane be added?

Yes

Startup method

Electric/Manual

Load capacity

650 kg

gear

3 forward gears, 1 reverse gear

Ground clearance

42 cm

Ascent angle

≤45°

More parameters

CM-G530 Remote-Control Lawn Mower

Overall dimensions

1000*880*550mm

Charging Mode

Self-charging system

Cutting width

530mm

Stubble height

20mm-120mm

Speed

0-7km/H

Climbing angle

＜45°

Total weight

145kg

Working Method

Hybrid

Startup method

Electric start / Recoil start

How to Use

Remote control

Travel motor

2 x 600W motors

Battery model

24v12A

Engine

Gasoline engine

Output power

9HP

More parameters

CM-CPD-15 1.5-Ton Electric Forklift

Model

CM-CPD-15

Lifting height

3000mm

Net weight (including battery)

2200kg

Rated load capacity

1500kg

Driving Style

Ride-on

Drive Type

Electric

Drive Control Type

AC Speed Control

Wheelbase

1350mm

Tire Type

Solid tire

Number of wheels: front/rear (x = driven wheel)

2x/2

Front wheel track

930mm

Rear track width

890mm

Overall length

3170mm

Overall width

1070/1220mm

Vehicle length

2100mm

Fork dimensions

35/100/1070

Brake Type

Hydraulic

Drive motor power

4.0kw

Travel speed (fully loaded/unloaded)

11/13(km/h)

Gradeability (fully loaded/unloaded)

12/15 (%)

Hoist motor power

3.0 kw

Battery Voltage/Capacity

60/70 (V/An)

More parameters

CM-T300 Off-Road Forklift with Multi-Function Rear Crane

Product Model

CM-T300

Equipment Load

3-ton 4WD off-road forklift with rear crane

Equipment Name

3M x 4-section manganese steel arm

Engine Model/Power

Yunnei 490/55 kW

Drive Type

Sigang

support leg

5 legs

Rated capacity of the boom

3 tons

Forklift lifting capacity

3.5 tons

Operation Mode

Perform the operation

Fork length

1220mm

Boom rotation angle

360°

Lifting height

4000mm

Tire Size

20.5/70-16

Braking system

All-wheel wet brakes

Axle

Heavy-duty truck axle

Transmission type

Continuously variable transmission

Hill-climbing ability

30°

More parameters

CM-T500 Off-Road Forklift with Multi-Function Rear Crane

Product Model

CM-T500

Product Name

5-ton 4WD off-road forklift with rear crane

Boom Specifications

4M x 4-section manganese steel arm (custom)

Engine Model/Power

4102 Turbocharged / 76 kW

Rated capacity of the boom

5.0 Tons

Drive Type

All-wheel drive

support leg

5 legs

Forklift lifting capacity

5.0 Tons

Operation Mode

Operations on the equipment

Fork length

1520mm

Boom rotation angle

360°

Lifting height

6000mm

Tire Size

16/70-20

Braking system

All-wheel wet brakes

Axle

Heavy-duty large-flange girder bridge

Transmission type

Continuously variable transmission

Hill-climbing ability

35°

More parameters

CM-260 Tracked Skid Steer Loader

Power Mode

Crawler-type

Rated load capacity (kg)

260

Overturning load (kg)

730

Total weight (kg)

1500

Types of Lifting Mechanisms

Radial lifting

Engine Brand

CatKubotaWeichaiYuchaiYunnei

Rated power (kW/rpm)

25.1/2800

Maximum torque (N·m)

Engine displacement (L)

1.5

Emissions Standards

U.S.EPA Tier 3

Maximum speed (km/h)

9.4

Bearing pressure (kPa)

19.2

Track plate width (mm)

297

Angle of departure (°)

System pressure (bar)

207

System Rated Flow Rate (L/min)

37.9

Fuel Tank (L)

37.9

Crankcase (L)

3.8

Engine Coolant (L)

5.6

Hydraulic Oil Tank (L)

30.3

Maximum height of the bucket hinge pin (mm)

2038

Overall length (with bucket) (mm)

2845

Total length (without attachments) (mm)

2311

Overall width (track edge to edge) (mm)

1220

Overall height (to the top of the cab) (mm)

1805

Minimum ground clearance (mm)

255

Track contact length (mm)

1380

More parameters

[Expand product categories]

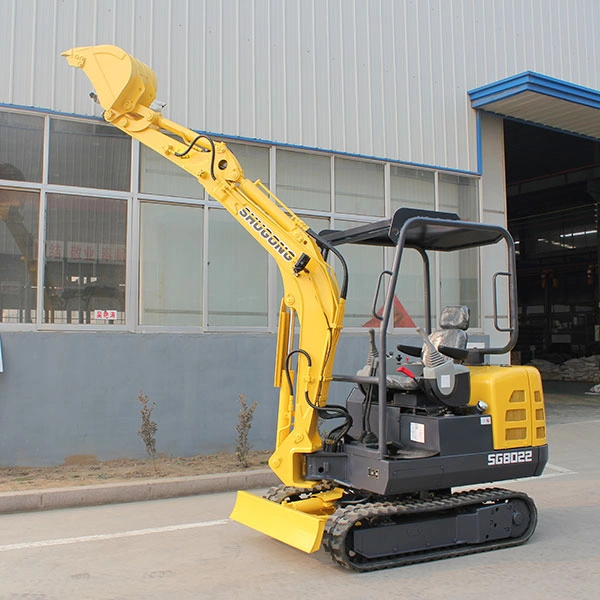

Compact excavator

Compact excavators, with their lightweight design, offer greater maneuverability and are ideal for small-scale construction projects, agricultural work, and operations in mountainous areas.

Screen Default Ranking Price By Date

CM-Y06 Compact Excavator

Bucket capacity (m³)

0.02

Bucket digging force

7.5kn

Maximum climbing angle

30°

Engine Model

Air-cooled single-cylinder diesel engine

Maximum engine output

7.6 kW / 8.2 kW

Walking speed

1.8 km/h

Dimensions (L x W x H)

2480 x 720 x 1375 mm

Total weight

600 kg

Track length

1140 mm

Track width

150 mm

Minimum ground clearance

80 mm

Maximum digging height

2350 mm

Maximum unloading height

1600 mm

Maximum digging depth

1200 mm

Maximum digging radius

2450 mm

Minimum turning radius

1100 mm

Maximum ground clearance of the dozer blade

120 mm

Maximum depth of blade penetration

200 mm

More parameters
